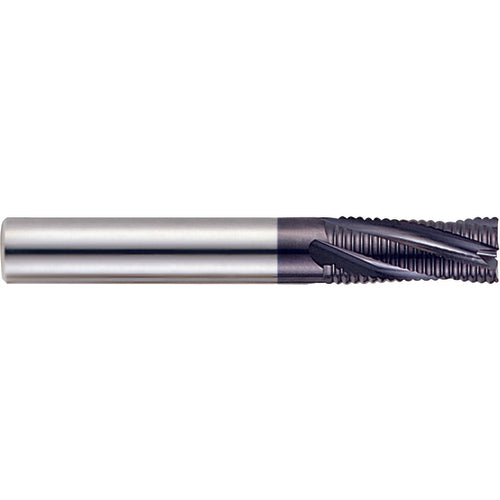

5/16 × 5/16 × 3/4 × 2-1/2 X-Power Mfl 20 Degree Long R End Mill
Item #: YG33GM156020
Brand: YG-1 Cutting Tools
Model #: GM156020
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Flute Helix Angle (FHA) | 20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Shank Type | Plain |
| Depth of Cut Maximum (APMX) | 3/4″ |
| End Shape | Square |
| Overall Length (OAL) | 2-1/2″ |
| Applicable Material | Steel |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ |
| Coating | Y-Coating |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Trade Name | X Power Pro |
