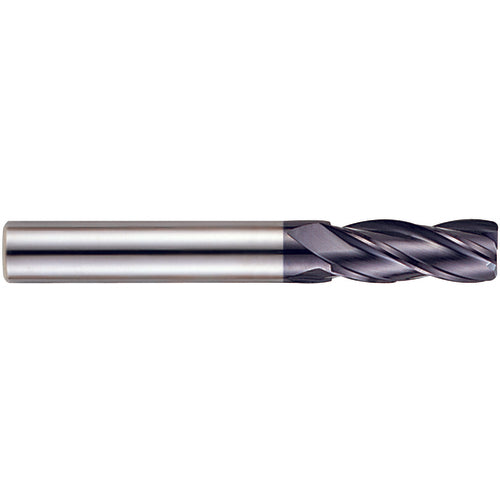

3/16(R.03″) × 1/4 × 3/8 × 2-1/2 X-Power 4Fl Stub Cr End Mill
Item #: YG33GM639904
Brand: YG-1 Cutting Tools
Model #: GM639904
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Y-Coating |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Flute Count (NOF) | 4 |
| Trade Name | X Power Pro |
| Flute Helix Angle (FHA) | 30 Degrees |
