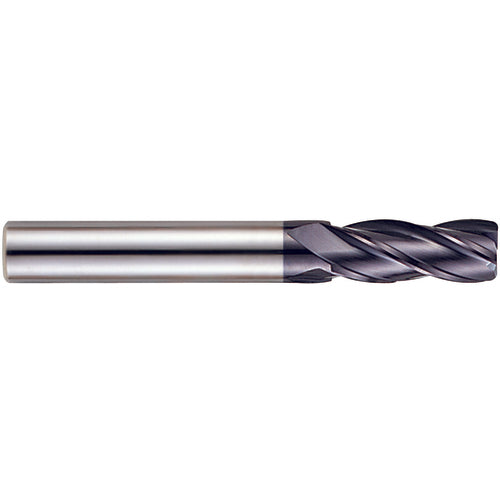

1/8(R.02″) × 1/4 × 1/2 × 2-1/4 X-Power 4Fl Regular Cr End Mill
Item #: YG33GM649901
Brand: YG-1 Cutting Tools
Model #: GM649901
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 2-1/4″ |
| Decimal Equivalent | 0.125″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Y-Coating |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Count (NOF) | 4 |
| Trade Name | X Power Pro |
| Flute Helix Angle (FHA) | 30 Degrees |
