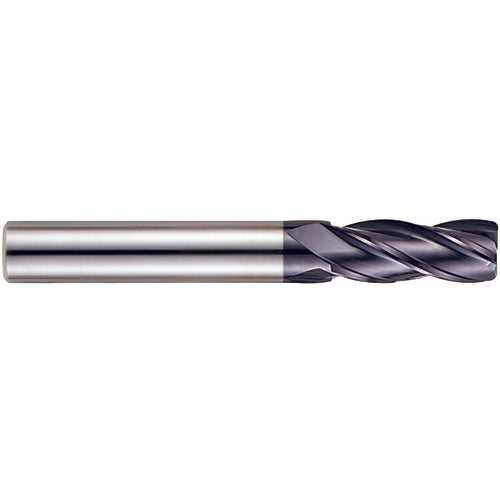

7/16(R.03″) × 7/16 × 1″ × 4″ X-Power 4Fl Regular Cr End Mill
Item #: YG33GM649916
Brand: YG-1 Cutting Tools
Model #: GM649916
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/16″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 4″ |
| Decimal Equivalent | 0.4375″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Y-Coating |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Flute Count (NOF) | 4 |
| Trade Name | X Power Pro |
| Flute Helix Angle (FHA) | 30 Degrees |
