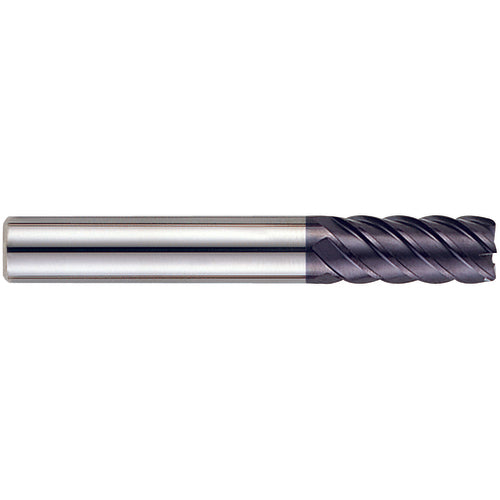

3/8(R.02″) × 3/8 × 7/8 × 2-7/8 X-Power Mfl 45 Degree Long Cr End Mill
Item #: YG33GM668024
Brand: YG-1 Cutting Tools
Model #: GM668024
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 6″ |
| Decimal Equivalent | 0.375″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Y-Coating |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Count (NOF) | 6 |
| Trade Name | X Power Pro |
| Flute Helix Angle (FHA) | 45 Degrees |
