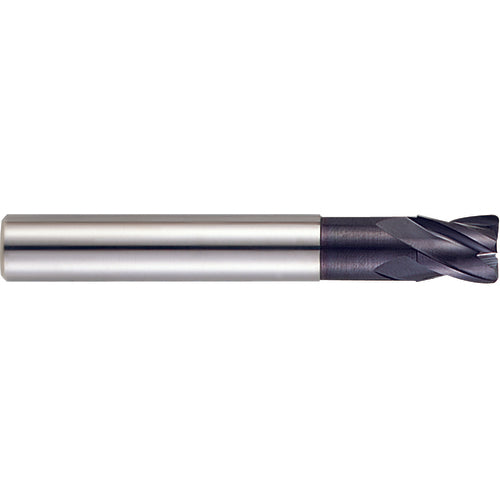

10(R1) × 10 × 12(25) × 70 X-Power 4Fl Stub Cr End Mill
Item #: YG33GM839100
Brand: YG-1 Cutting Tools
Model #: GM839100
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Shank Type | Plain |
| Depth of Cut Maximum (APMX) | 12 mm |
| End Shape | Corner Radius |
| Overall Length (OAL) | 70 mm |
| Applicable Material | Steel |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Coating | Y-Coating |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.0394″ |
| Flute Count (NOF) | 4 |
| Trade Name | X Power Pro |
