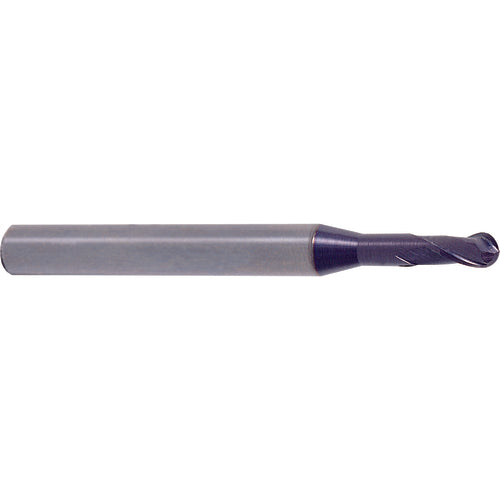

1 × 4 × 1.5(12) × 45 X-Power 2Fl Rib Ball Nose End Mill
Item #: YG33GM886904
Brand: YG-1 Cutting Tools
Model #: GM886904
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1 mm |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Usable Length (LU) | 12 mm |
| Depth of Cut Maximum (APMX) | 1.5 mm |
| Applicable Material | Steel |
| Overall Length (OAL) | 45 mm |
| Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Rib Processing |
| Coating | Y-Coating |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | GM886 |
