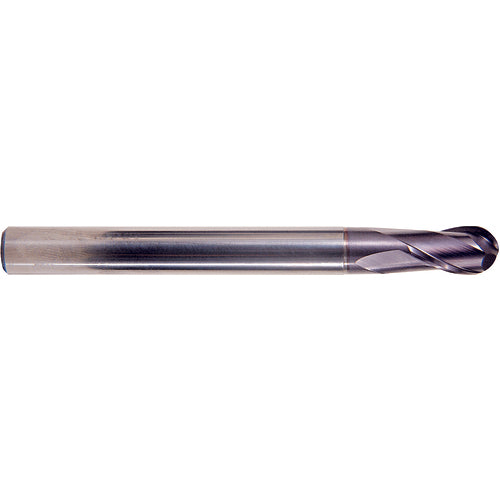

5/16 × 5/16 × 9/16(1_1/16) × 3_1/2 X-Power 2Fl Medium Ball Nose End Mill
Item #: YG33GM961020
Brand: YG-1 Cutting Tools
Model #: GM961020
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Usable Length (LU) | 1-1/16″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Applicable Material | Steel |
| Depth of Cut Maximum (APMX) | 9/16″ |
| Tool Type | Ballnose Endmill |
| Overall Length (OAL) | 3-1/2″ |
| Length Group | Medium |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | Y-Coating |
| Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | GM961 |
| Shank Type | Plain |
