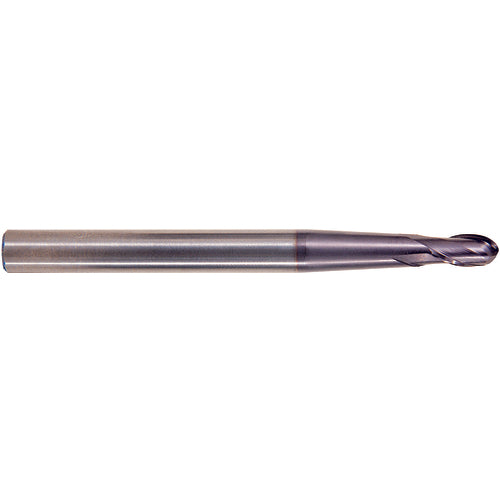

3/16 × 3/8 × 3/8(2_3/8) × 4_3/8(1.5?) X-Power 2Fl Tn-B E/M
Item #: YG33GM963012
Brand: YG-1 Cutting Tools
Model #: GM963012
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| Usable Length (LU) | 2-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Applicable Material | Steel |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Tool Type | Ballnose Endmill |
| Overall Length (OAL) | 4-3/8″ |
| Length Group | Extra Long |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | Y-Coating |
| Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | GM963 |
| Shank Type | Plain |
