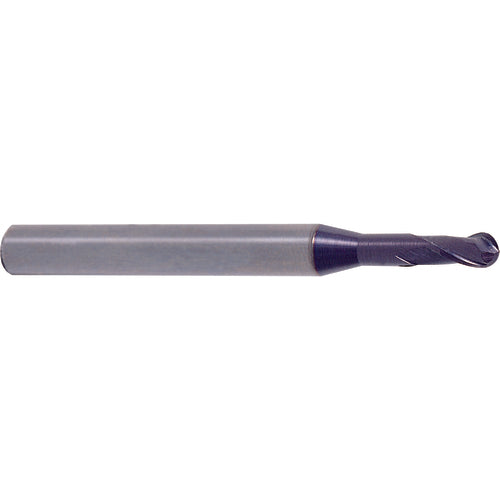

3/32 × 1/8 × 9/64(5/8) × 2″ X-Power 2Fl Rib Ball Nose End Mill
Item #: YG33GM967006
Brand: YG-1 Cutting Tools
Model #: GM967006
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.047″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 1/16″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 2″ |
| Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Rib Processing |
| Coating | Y-Coating |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | GM967 |
