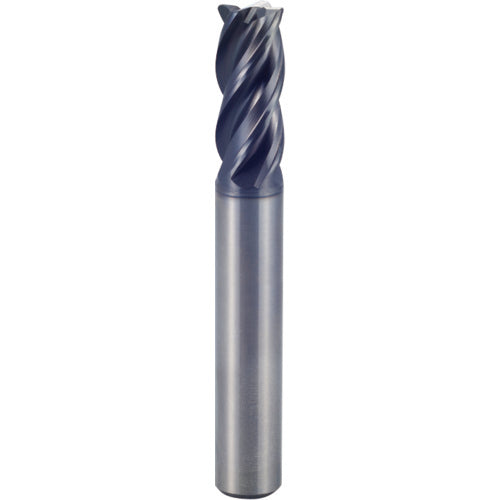

15/32″ × 1/2″ × 5/8″ × 2 1/2″ 4 Flute 0.0300″ C/R Carbide End Mill-Plain Shank - Y-Coating
Item #: YG35UGMF70030
Brand: YG-1 Cutting Tools
Model #: UGMF70030
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 15/32″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Applicable Material | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Overall Length (OAL) | 2-1/2″ |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Tool Type | 4 Flute Standard Length |
| Coating | Y-Coating |
| Decimal Equivalent | 0.46875″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 36 Degrees |
| Series/List # | UGMF70 |
