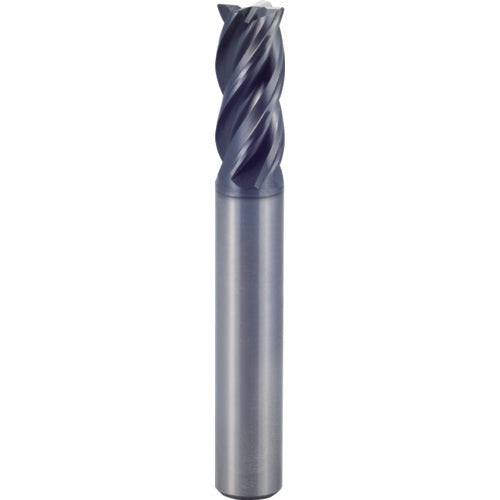

7/16″ × 7/16″ × 7/8″ × 2 3/4″ 4 Flute Chamfer Carbide End Mill-Plain Shank - Y-Coating
Item #: YG35UGMF76028
Brand: YG-1 Cutting Tools
Model #: UGMF76028
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/16″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Applicable Material | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Overall Length (OAL) | 2-3/4″ |
| Corner Chamfer Width (CHW) | 0.013″ |
| Cutting Edge Material | Carbide |
| Tool Type | 4 Flute Standard Length |
| Coating | Y-Coating |
| Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 36 Degrees |
| Series/List # | UGMF76 |
