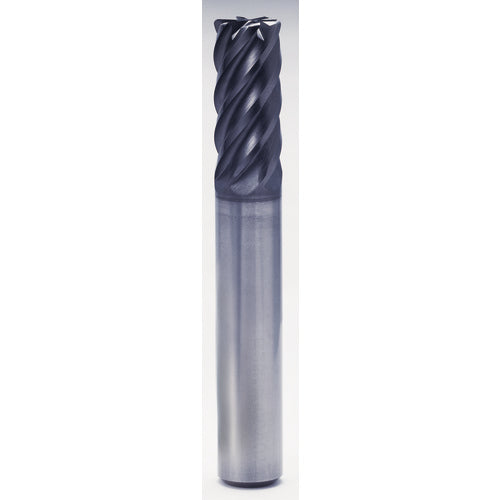

1/4″ × 1/4″ × 1 1/8″ × 3″ 6 Flute 0.0600'' C/R Carbide End Mill-Plain Shank - Y-Coating
Item #: YG35UGMG22961
Brand: YG-1 Cutting Tools
Model #: UGMG22961
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Overall Length (OAL) | 3″ |
| Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide |
| Tool Type | 6 Flute Standard Length |
| Coating | Y-Coating |
| Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | UGMG22 |
