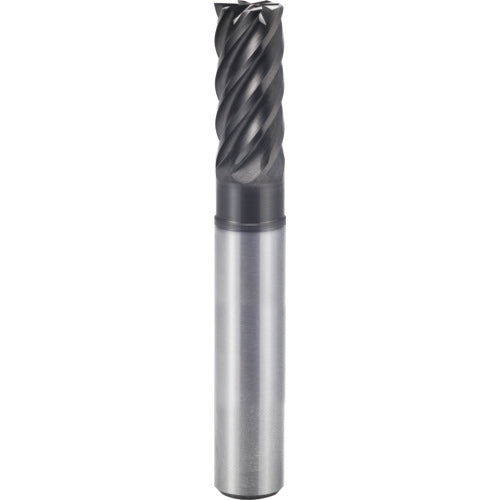

5/8″ × 5/8″ × 3/4″ × 5″ 6 Flute Square End Carbide End Mill-Plain Shank - Y-Coating
Item #: YG35UGMH08921
Brand: YG-1 Cutting Tools
Model #: UGMH08921
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 2-3/8″ |
| Usable Length (LU) | 3/4″ |
| Overall Length (OAL) | 5″ |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Cutting Edge Material | Carbide |
| Tool Type | 6 Flute Extended Length |
| Coating | Y-Coating |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Series/List # | UGMH08 |
