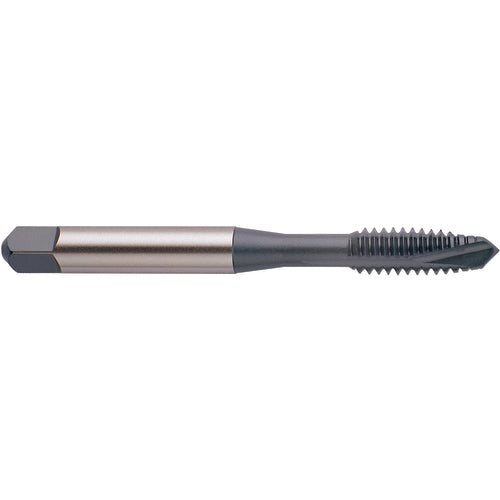

M10X1.0 D11 3F SP PL-S/O
Item #: YG41IB44A
Brand: YG-1 Cutting Tools
Model #: IB44A
| Product Specifications | |
|---|---|
| Thread Standard | MF |
| Tool Type | Spiral Point Tap |
| Thread Size | M10 × 1 |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Diameter Size (TDZ) | M10 |
| Thread Cutting Part Length (THL) | 0.748″ |
| Thread Pitch (TP) | 1 mm |
| Tapping Prehole Diameter (Pre-hole) | 0.357″ |
| Thread Tolerance Class (TCTR) | D11 |
| End Shape | Plug |
| Usable Length (LU) | 1.252″ |
| Shank Type | Square |
| Overall Length (OAL) | 2.94″ |
| Length Group | 3xD |
| Chamfer | 4P-5P |
| Square Size | 0.286″ |
| Coating | Oxide |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | IB |
| Cutting Edge Material | HSSE-V3 |
