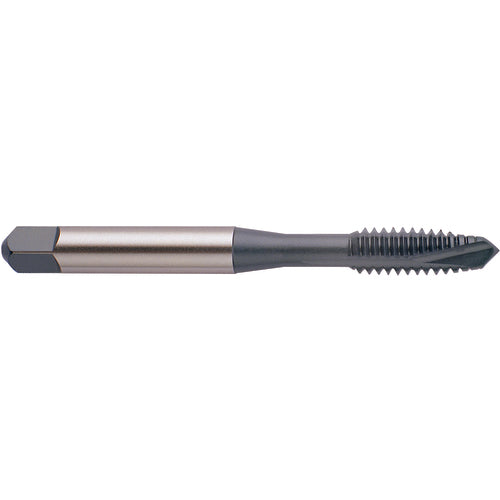

1/4-20 H3 3FL SP PT TAP PLUG BRIGHT
Item #: YG41J4403
Brand: YG-1 Cutting Tools
Model #: J4403
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Tool Type | Spiral Point Tap |
| Thread Size | 1/4″ - 20 |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Cutting Part Length (THL) | 0.591″ |
| Threads per Inch (TPI) | 20 |
| Tapping Prehole Diameter (Pre-hole) | 0.204″ |
| Thread Tolerance Class (TCTR) | H3 |
| End Shape | Plug |
| Usable Length (LU) | 1″ |
| Shank Type | Square |
| Overall Length (OAL) | 2.5″ |
| Length Group | 3xD |
| Chamfer | 4P-5P |
| Square Size | 0.191″ |
| Coating | Bright |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | J4 |
| Cutting Edge Material | HSSE-V3 |
