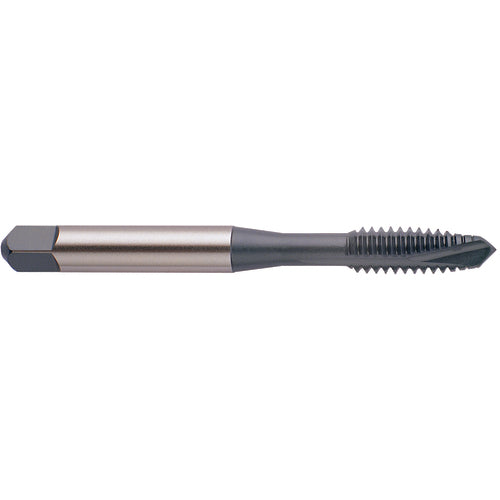

M4X0.7 D4 2FL SP PT PLUG
Item #: YG41L7244
Brand: YG-1 Cutting Tools
Model #: L7244
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.7 mm |
| Standard | 302A |
| Thread Standard | Metric |
| Chamfer | 4P-5P |
| Overall Length (OAL) | 2.13″ |
| Coating | Bright |
| Usable Length (LU) | 0.768″ |
| Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 0 Degrees |
| Tapping Prehole Diameter (Pre-hole) | 0.1324″ |
| Cutting Edge Material | HSS-V |
