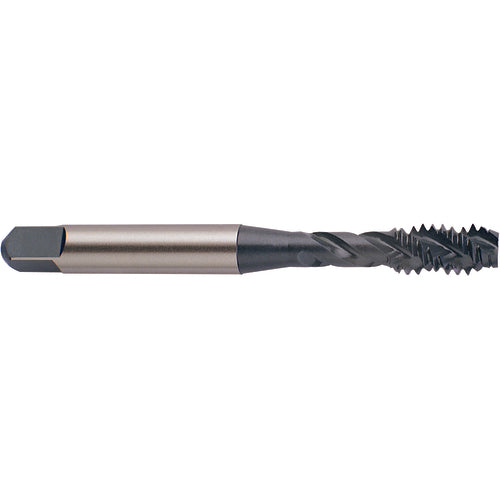

1-3/8-6 H6 4F SF BOT-HRDS
Item #: YG42E0906
Brand: YG-1 Cutting Tools
Model #: E0906
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-3/8″ |
| Thread Tolerance Class (TCTR) | H6 |
| Threads per Inch (TPI) | 6 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | UNC |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 6.06″ |
| Coating | HardSlick |
| Thread Cutting Part Length (THL) | 1.181″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 3.583″ |
| Length Group | 2.5D |
| Connection Diameter Machine Side (DCONMS) | 1.108″ |
| Square Size | 0.831″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Tapping Prehole Diameter (Pre-hole) | 1.223″ |
| Cutting Edge Material | HSSE-V3 |
