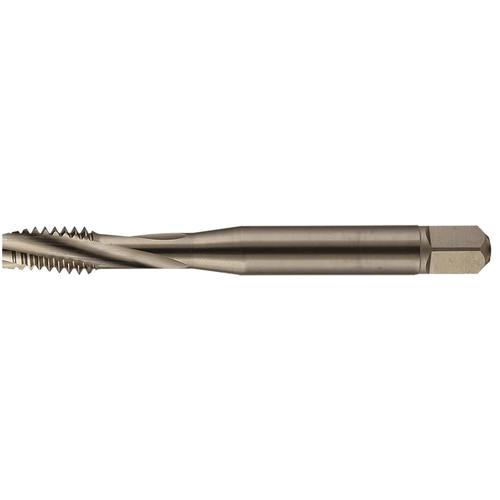

M8X1 NI ZELX TI SP FL D5 MOD BOTT
Item #: YM13387707
Brand: YMW Taps
Model #: 387707
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Chamfer | 3P-4P |
| Thread Size | M8 × 1 |
| Coating | Nitride |
| Thread Diameter Size (TDZ) | M8 |
| Cutting Edge Material | HSSPM |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Tap |
| Thread Tolerance Class (TCTR) | D5 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Usable Length (LU) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Overall Length (OAL) | 2-23/32″ |
