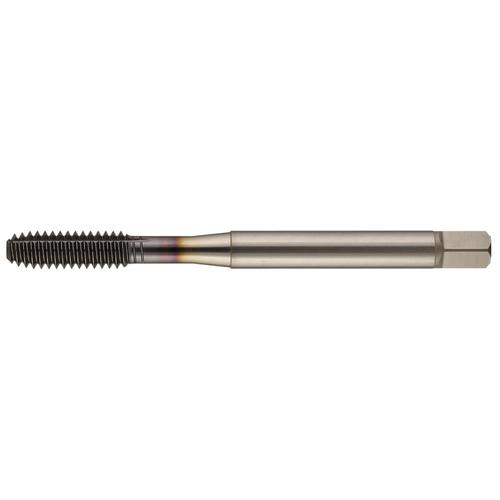

387873-MHRZ 1/4-20 H7
Item #: YM20387873
Brand: YMW Taps
Model #: 387873
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TiCN |
| Thread Diameter Size (TDZ) | 1/4″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3.15″ |
| Threads per Inch (TPI) | 20 |
| Usable Length (LU) | 1.181″ |
| Chamfer | 2P |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Edge Material | HSSCo |
| Thread Tolerance Class (TCTR) | H7 |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC |
| Thread Size | 1/4″ - 20 |
| Applicable Material | Other Non-Metallic Materials |
