OD Turning Holders - MCLNR/L, ACLNR/L

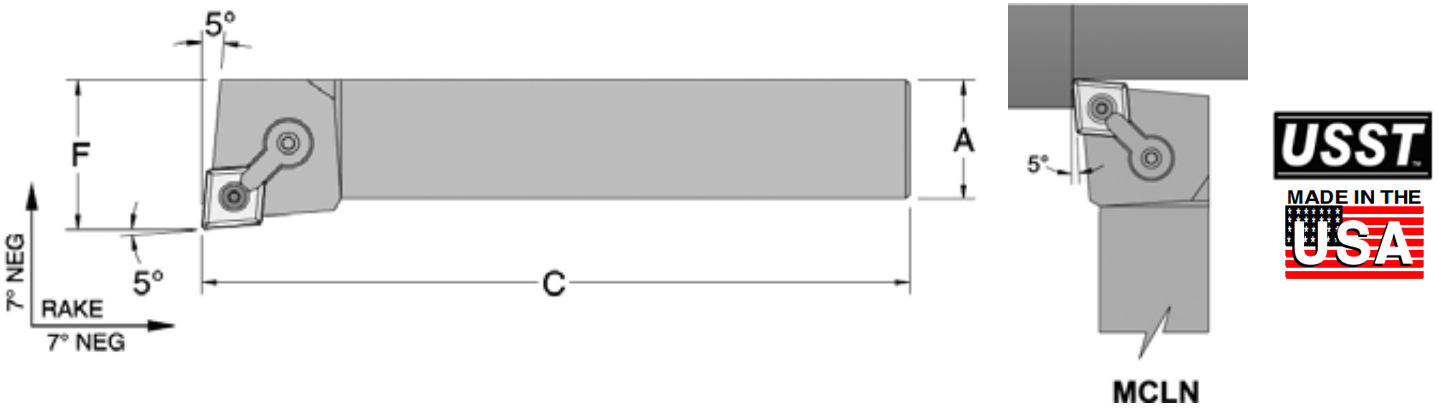

MCLNR/L
  • -5° Side & End Cutting
  • Offset Shank
  • Negative Rake
  • Using CNMG, CNMA, CNG_ & CNM_ type inserts
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for CNMG Inserts
EXTRA HARDWARE
Industry
Reference		 Shank
A		 OAL
C		 Right Hand
Model		 Left Hand
Model		 Inserts Seat Lock Pin Clamp Clamp Screw
MCLNR/L-124B 3/4” SQ 5 TH-1105
TH-2105
CNMG-43 ICSN-433
NL-46
CL-20
XNS-48
MCLNR/L-164C 1” SQ 5 TH-1110
TH-2110
CNMG-43 ICSN-433
NL-46
CL-20
XNS-48
MCLNR/L-164D 1” SQ 6 TH-1115
TH-2115
CNMG-43 ICSN-433
NL-46
CL-20
XNS-48
MCLNR/L-204D 1-1/4” SQ 6 TH-1120
TH-2120
CNMG-43 ICSN-433
NL-46
CL-20
XNS-48
MCLNR/L-854D 1” X 1-1/4” 6 TH-1125
TH-2125
CNMG-43 ICSN-433
NL-46
CL-20
XNS-48

A-Type Toolholders

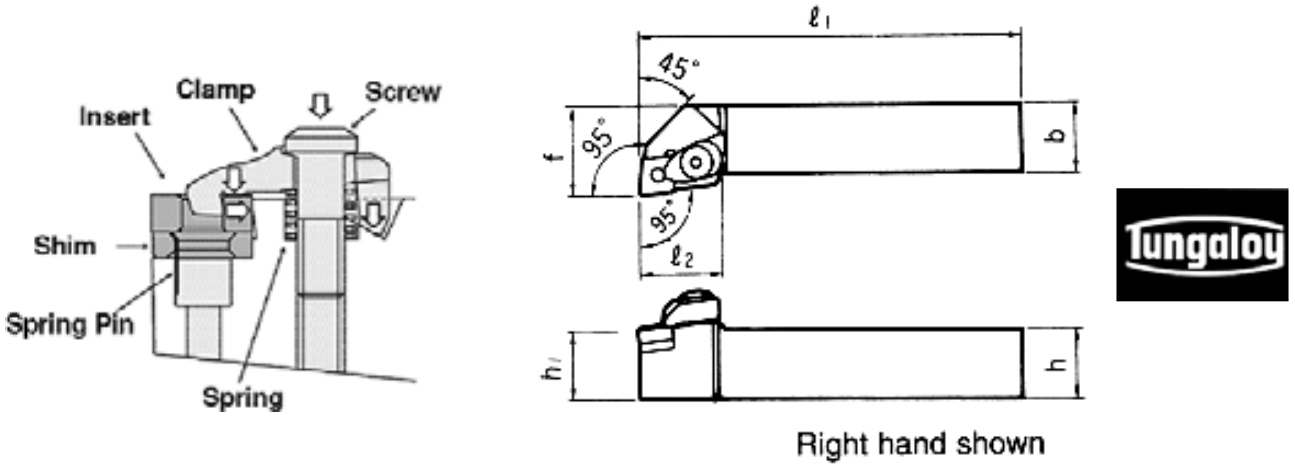

ACLNR/L
  • One action double clamping
  • Strong and positive clamping power
  • Fewer parts
  • High accuracy
Prices are pulled from our database in real time. Press Add button to see product price.
Click here for CNMG Inserts
Right Hand
Model		 Left Hand
Model		 b h h1 l1 f Applicable
Insert		 Shim or
Seat		 Sprin Pin Spring Clamp Clamp Screw Wrench
TO-ACLNR12-3
TO-ACLNL12-3
0.75 0.75 0.75 4.5 1 CN _ _ 32 _ TO-ELSC32
TO-LSP3
TO-BP-7
TO-ACP3
TO-ACS3
TO-P-3
TO-ACLNR16-3
TO-ACLNL16-3
1 1 1 6 1.25 CN _ _ 32 _ TO-ELSC32
TO-LSP3
TO-BP-7
TO-ACP3
TO-ACS3
TO-P-3
TO-ACLNR12-4
TO-ACLNL12-4
0.75 0.75 0.75 4.5 1 CN _ _ 43 _ TO-LSC42
TO-LSP4
TO-BP-9
TO-ACP4
TO-ACS4
TO-P-4
TO-ACLNR16-4A
TO-ACLNL16-4
1 1 1 6 1.25 CN _ _ 43 _ TO-LSC42
TO-LSP4
TO-BP-9
TO-ACP4
TO-ACS4
TO-P-4
