OD Turning Holders - MCRNR/L, MDPNN, MSDNN

MCRNR/L

15° Side Cutting,
Offset Shank
Negative Rake
Using CNMG, CNMA, CNG_ & CNM_ type inserts

Prices are pulled from our database in real time. Press Add button to see product price.
Click here for CNMG Inserts

					EXTRA HARDWARE

Industry Reference	Shank A	OAL C	Right Hand Model	Left Hand Model	Uses Inserts	Seat	Lock Pin	Clamp	Clamp Screw
MCRNR/L-124B	3/4”SQ	5	TH-1130	TH-2130	CNMG-43	ICSN-433	NL-46	CL-9	XNS-58
MCRNR/L-164D	1”SQ	6	TH-1135	TH-2135	CNMG-43	ICSN-433	NL-46	CL-9	XNS-58
MCRNR/L-165D	1”SQ	6	TH-1140	TH-2140	CNMG-54	ICSN-533	NL-58	CL-9	XNS-510
MCRNR/L-205D	1-1/4”SQ	6	TH-1145	TH-2145	CNMG-54	ICSN-533	NL-58	CL-9	XNS-510

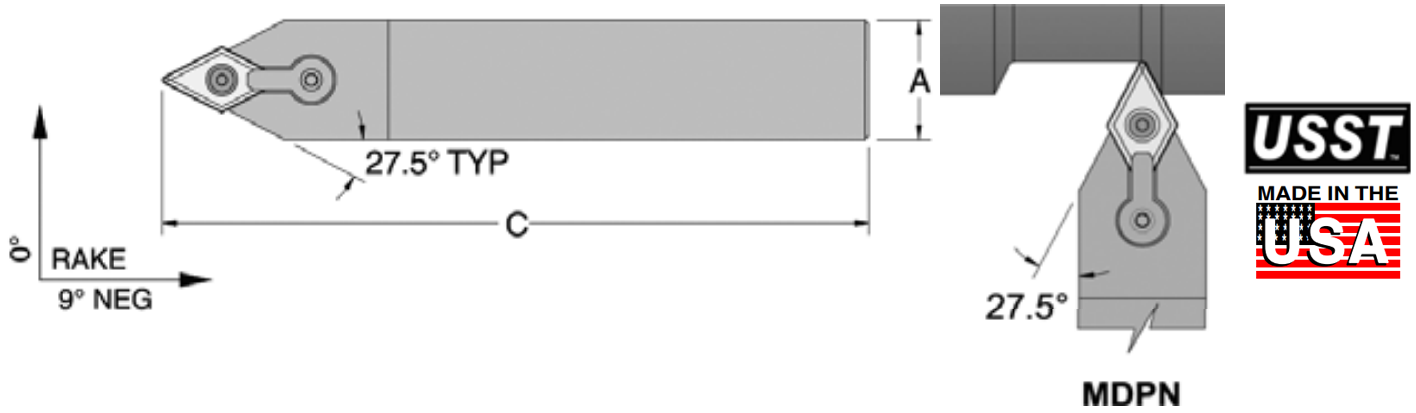

MDPNN

27.5° Side Cutting
Straight Shank
Negative Rake
Using DNMG, DNMA, DNG_ & DNM_ type inserts

Prices are pulled from our database in real time. Press Add button to see product price.
Click here for DNMG Inserts

				EXTRA HARDWARE

Industry Reference	Shank A	OAL C	Neutral Hand Model	Uses Inserts	Seat	Lock Pin	Clamp	Clamp Screw
MDPNN-164D	1” SQ	6	TH-1170	DNMG-43	IDSN-433	NL-46	CL-6	XNS-36
MDPNN-165D	1” SQ	6	TH-1175	DNMG-54	IDSN-533	NL-58	CL-12	XNS-510
MDPNN-204D	1-1/4” SQ	6	TH-1180	DNMG-43	IDSN-433	NL-46	CL-12	XNS-510
MDPNN-205D	1-1/4” SQ	6	TH-1185	DNMG-54	IDSN-533	NL-58	CL-12	XNS-510
MDPNN-855D	1” X 1-1/4”	6	TH-1190	DNMG-54	IDSN-533	NL-58	CL-12	XNS-510

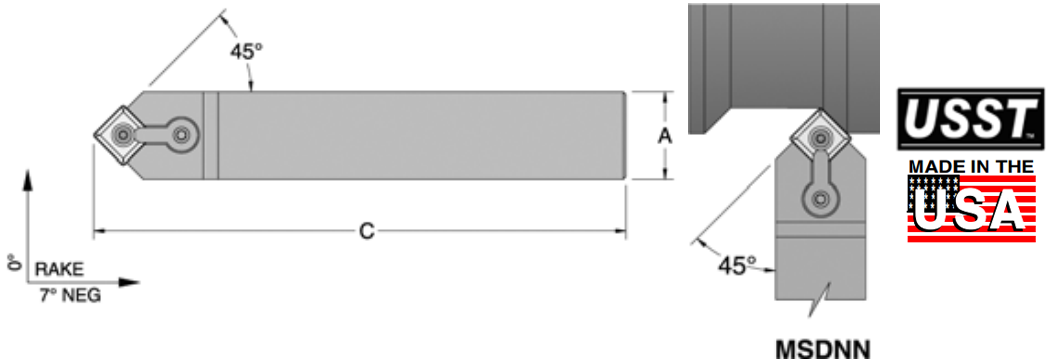

MSDNN

45° Side Cutting
Straight Shank
Negative Rake
Using SNMG, SNGA, SNMA & SNM_ type inserts

Prices are pulled from our database in real time. Press Add button to see product price.
Click here for SNMG Inserts

				EXTRA HARDWARE

Industry Reference	Shank A	OAL C	Neutral Hand Model	Uses Inserts	Seat	Lock Pin	Clamp	Clamp Screw
MSDNN-103B	5/8”SQ	5	TH-1195	SNMG-33	ISSN-322	NL-34	CL-6	XNS-36
MSDNN-123B	3/4”SQ	5	TH-1200	SNMG-33	ISSN-322	NL-34	CL-6	XNS-36
MSDNN-124B	3/4”SQ	5	TH-1205	SNMG-43	ISSN-433	NL-46	CL-9	XNS-59
MSDNN-164D	1”SQ	6	TH-1210	SNMG-43	ISSN-433	NL-46	CL-9	XNS-59
MSDNN-165D	1”SQ	6	TH-1215	SNMG-54	ISSN-533	NL-58	CL-12	XNS-510
